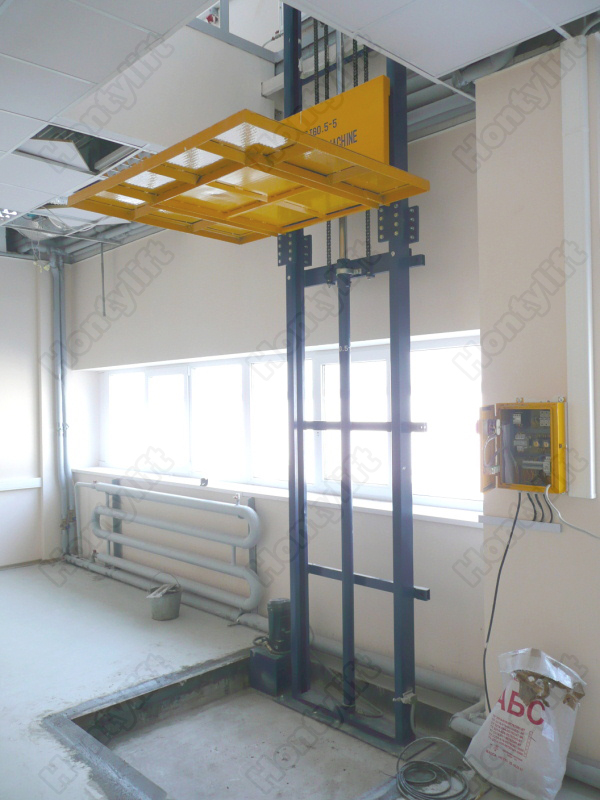

China supplier offers cheap hydraulic guide rail warehouse hydraulic cargo lift warehouse elevator lift

Product Description





China supplier offers cheap hydraulic guide rail warehouse hydraulic cargo lift warehouse elevator lift



lead rail electrical freight elevator Introduce:

1).Fast, efficient, convenient and safe .



2).Used for mezzanines, balconies, basements, and any levels in multistoried building.



3).It can be installed indoor or outdoor. It is suitable for where cannot be dig the pit.



Model

Loading Capacity

Lifting height

Min.height

Table  size

Power

HTDG0.5-4.5

500kg

4500mm

150mm

2000*1500mm

2.2kw

HTDG1.0-4.5

1000kg

4500mm

150mm

2000*1500mm

3kw

HTDG2.0-4.5

2000kg

4500mm

150mm

2000*1500mm

3kw

HTDG3.0-4.5

3000kg

4500mm

160mm

2000*1500mm

3kw

HTDG0.5-7.5

500kg

7500mm

150mm

1200*1200mm

1.5kw

HTDG1.0-7.5

1000kg

7500mm

150mm

1800*1400mm

2.2kw

HTDG2.0-7.5

2000kg

7500mm

150mm

2000*1500mm

2.2kw

HTDG3.0-7.5

3000kg

7500mm

160mm

2000*1600mm

3kw

HTDG1.0-10.5

1000kg

10500mm

150mm

1800*1400mm

2.2kw

HTDG1.0-14

1000kg

1400mm

150mm

1800*1500mm

2.2kw

HTDG3.0-4.5

3000kg

4500mm

160mm

5000*3000mm

4kw










lead rail electrical freight elevator Application:



1).Moves materials--in factories, warehouses, industrial plants.



2).Products or supplies need to move from one level to another.



3).Provides fast, efficient,convenient and safe access to mezzanines, balconies, basements.



4).Any levels in multistoried building.



5). It can be installed indoor and outdoor applications.











lead rail electrical freight elevator Advantages:



1)Chain lifting platforms, with flexible lifting range, large loading capacity, are compact and light weight.



2)The platform moves smooth, operates simply, safely and reliably.



3)The pit should be 15cm-30cm, the height of the top is unlimited.



4)Custom made according to the surroundings.



5)Install inside or outsid of the multistoried building.





lead rail electrical freight elevator Features:

  1)Relief valve: prevents upward movement when the system pressure is too high
  2)Emergency manual valve: When the power fails, can the car down to the nearest emergency position-floor door,
  3)Manual pump: When the system fails, manually steerable high-pressure oil pump shot the car up to the nearest floor location;
  4) Hose rupture valve: When the hydraulic system piping rupture car stal
l decline, automatically cut off the oil stopped declining

 5) Oil fuel tank protection: When the oil temperature in the tank exceeds the standard set value, the oil protection device generating signal, suspend the use of elevators, when the elevator started before the oil decline.





Our service:

1.One year warranty for whole machines.

2.Providing free quick-wear part.

3. Email/ Skype/ MSN/ Trade manager online to support.

4. Life-long Technical Support and After-sale Service free of charge.

5.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.

6. Free and Professional Training at our Factory under the relaxed condition.

Our company:

Jinan Honty lift was founded in 2005, which is one of the main manufacturer of hydraulic equipments located in China elevator base. Since the revolution in 2006, we took the development on the technology of hydraulic lifting table as well as elevator, and now we are the main number of the manufacturer of Lifting, Transportation, Stocking and Logistics of China, and we are also given the honor of “Company with good credit” by the Chinese Government.

We have excellent equipment, advanced technology, perfect detection method and skilled technicians as well; we have 12 series, more than 100 models products, main business is to design and manufacture non-standard product.
Our products approved -CE&ISO,exported to Europe North America South America Mid-east  Southeast Asia Easten Asia,etc.got good reputation. As one of  China's lift machine  leading  enterprises, we are committed to create the world advanced level  lift.



FAQ



1. How about the delivery time?

Within 15 working days after we receive the payment.

2. What kind of payments do you support?

T/T in advance, L/C, Western Union, other kinds, pls contact with us.

3. Can you produce according to customer's requirements?

Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size, OEM is also available.

4. Can you tell us your main customers?

That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u. At the same time, pls rest assured that your information is also safe here.











Contact us if you need more details on Cargo Lift. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Hydraulic Guide Rail Warehouse Hydraulic Lift、Warehouse Elevator Lift. If these products fail to match your need, please contact us and we would like to provide relevant information.
