Supply small size 3 ton manual lever chain pulley block
Product Description
Supply small size 3 ton manual lever chain pulley block Product Description

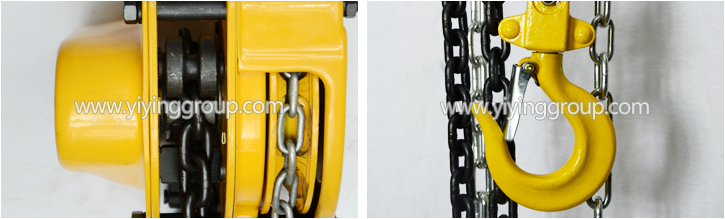

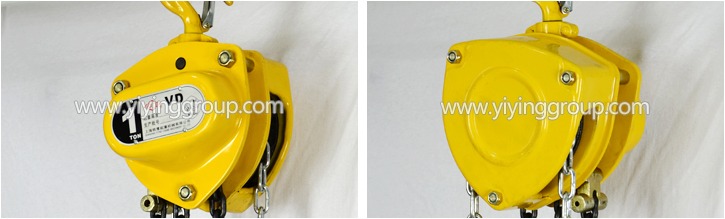

Physical diagram shows High quality, economical, safe and reliable hand chain block Featuring a drop forged load hook to prevent snapping when overloading. The opening of the hooks has been made wider for easier handling and working. Our Products Product Range:(Click the blue words for more information) Electric Chain Hoist/wire rope hoist/Wire Rope Winch/Mini Type Hoist/Pallet truck/Hydraulic jack/Explosion-proof hoist/Stainless steel hoist/lever hoist/ Chain Hoist Know more<<>> Company Information Shanghai Yiying Crane Machinery Co., Ltd. Was established in 1992, which specializing in designing and manufacturing Manual Chain Hoist, Lever Hoist , Electric Hoists, Forklift and other lifting products. 1. Annual production in 5 million units production area 3600 square meters; 2. 4 production bases in HangZhou, Chongqing, Jiangsu and Hebei. 3. 120 production lines; 4. More than 500 employees; 5. Annual export value over 50 million RMB. Why choose us BRAND ADVANTAGE 1. 50 years brand history; (Trademark registration number; 1975110) 2. TOP5 Lifting Equipment supplier in China; 3. One of the first batch of enterprises certified by Alibaba; 4. Brand customers: CNPC, China Railway Group and so on TECHNOLOGY ADVANTAGES 1. Focuse on the production and R&D of lifting equipment for about 30 years; 2. Professional independent research and development team, recognized by domestic and foreign customers. 3. Company was honored by the givernment as a High-Tech enterprise in 2010 Service Advantage 1. 7D*24H after-sales service, 2. More than 100 professional service staff. The products of our company have exported to over 80 countries and regions,including EUROPE,USA,AUSTRALIA and SOUTHEAST ASIA,etc. Certifications RIGOROUS QUALITY CONTROL 1. Certificate:CE,SGS,ISO:9001,BV 2. The third-party inspection for quality testing is accepted 3. Product qualification rate more than 98% 4. In accordance with the requirements of Environmental Protection Administration, the quality and delivery can be guaranteed Packaging & Shipping Our Services 1. Perfect maintenance service and maintenance consultation system to provide high quality experience for customers at home and abroad; whole year warranty. 2. Small order can be accepted, MOQ 1PCS. 3. Quality assurance agreement provided. 4. 7D*24H after-sales service. 5. More than 100 professional service staff. 6. Video tutorials, maintenance, technical consultants, installation guidance are offered. FAQ 1.Is your product customized? Thanks for your question. Yes, because the working condition are different, All our products are customized dependingon detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote! 2. What’s the information should I provide when inquiry? Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, or other specials you give us will be more appreciated. 3. How many operating methods for my selection? Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us! 4.The space of my workshop is limited, can the crane ok for mine? Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer. 5. What’s the information should I provide when inquiry? a. What's the lifting material? b. How much is the maximum lifting weight of the hoist?
c. Have you installed the rails? Do you need us supply the rails? How long is it?
d. Where are the working environment? Know more<<>> Contact us if you need more details on 3 ton chain block. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 3 ton chain pulley block、3 ton manual chain block. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Parameter | ||||||||||
Model | VC-B 0.5 | VC-B 1 | VC-B 1.5 | VC-B 2 | VC-B 3 | VC-B 5 | VC-B 10 | VC-B 20 | VC-B 30 | VC-B 50 |
Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
Standard lift(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Running test load (t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | 45 | 75 |
No.of falls of load chain | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | 24 |
Load chain diameter(mm) | 5 | 6.3 | 7.1 | 8 | 7.1 | 9 | 9 | 9 | 9 | 9 |
Dimension(mm) A | 129 | 149.5 | 157.5 | 161.5 | 151.5 | 163 | 207 | 215 | 350 | 406 |
B | 136 | 145 | 164.5 | 187 | 164.5 | 211 | 398 | 650 | 680 | 962 |
C | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | 1380 | 2578 |
Net weight(kg) | 8.4 | 12 | 16.2 | 20 | 24 | 41 | 79 | 193 | 220 | 1092 |
Packing(L*W*H) (cm) | 22x14x15 | 25x19x16 | 33x24x16 | 33x24x19 | 34.5x24x16 | 40x30x19 | 48x4218.5 | 78x68x20 | 85x67x30 | 110x100x130 |
Features |
1. High quality, economical, safe and reliable hand chain block. |

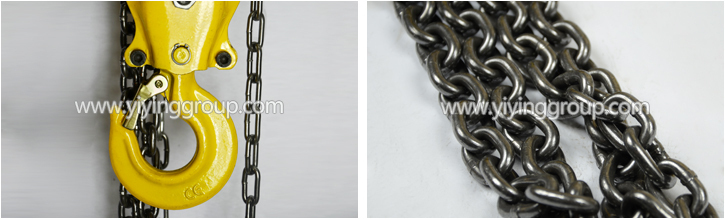

2. Featuring a drop forged load hook to prevent snapping when overloading. |
3. Factory tested and certified. |
4. Heat treated for greater strength and to prevent wear. |
5. The opening of the hooks has been made wider for easier handling and working. |
6. Reliable disk brake and premium grade alloy chain. |
7. Heat treated for greater strength and to prevent wear. |
c. Have you installed the rails? Do you need us supply the rails? How long is it?
d. Where are the working environment? Know more<<
