5ton hydraulic stationary scissor lift / hydraulic manual car jack lift

Product Description

Product Description

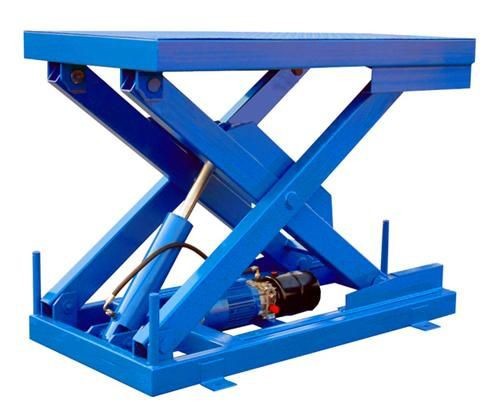

5ton hydraulic Stationary scissor lift / hydraulic manual  car jack lift

1. Superior material

 Stationary Scissor Lift  platform is made with   high-strength steel frame structure

2. High capacities : 0.1T to 100t

3.Customizable

the size and equipment size can be customized according  to user needs.

4. Safe

Safety features include All-sided safety edges, deadman pushbutton control, safety support legs, safety roller   curtains, portal rails, etc



name

type

mix height

(mm)

rises height

(mm)

raise weight

(kg)

platform size

(mm)

Power

(kw)

Weight

(kg)

Stationary lift tables

SJG4.5-3.5

760

3500

4500

4000*2000

5.5

4500

SJG2-4.8

700

4800

2000

3600*2000

5.5

3800

SJG3-7.2

860

7200

3000

5500*3000

11

8870

SJG0.5-5

850

5000

500

2000*1000

2.2

1200

SJG1-3.3

840

3300

1000

1900*1500

3

1300

SJG1-4.3

860

4300

1000

2500*2500

1.5

2500

SJG1-6

1230

6000

1000

2200*1500

2.2

2500

SJG2-3.5

1000

3500

2000

2200*1500

2.2

1800

SJG2-4.5

1070

4500

2000

1600*1600

4

2500

SJG2-6.8

1400

6800

2000

2550*2200

4

3300

SJG3-4.5

1060

4500

3000

2200*1800

4

2200

SJG5-5.4

950

5400

5000

5000*1600

7.5

6000

Advantages

1.explosion-proof valves :protect hydraulic pipe ,anti-hydraulic pipe rupture

2.spillover valve : it can prevent high pressure when the machine moves up.Adjust the pressure

3.emergency decline valve:it can go down when you meet an emergency

4.safety  bar:when platform decline ,if it touch anything ,it will be stop ,so it can protect goods or operators

5.phase lack &phase dislocation protection .

6.Control mode optional wireless remote control and other means

7.Low  failure rate

8.Reliable operation

Features 1, The scissor lift platformis generally used for lifting cargo and people to working place. Loading and unloading goods from ground to underground or to other floors.

2, The capacity is various depending on the different working height .From 100kg to 30tons. The control system and working voltage can be changed to client's requirements.

3, Lift tables are suitable for factory, institutions, shopping, garages, warehouse and other industries.

4, The lift installed in the ground pit so it did not take the ground space and did not hindrance transportation

details:
FAQ

1. How about the delivery time?
Within 10 working days after we receive the order


2. What kind of payments do you support?
T/T, L/C, Western Union, other kinds, pls contact with us.

3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ. More quantity, better price. pls contact with us.

4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.

5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.



Quality control

Our product are be approved by CE and ISO9001.and we can provide 1-year after-sale service apart from man-made damaged
