hydraulic pump jack 2 ton hand pallet truck

Product Description

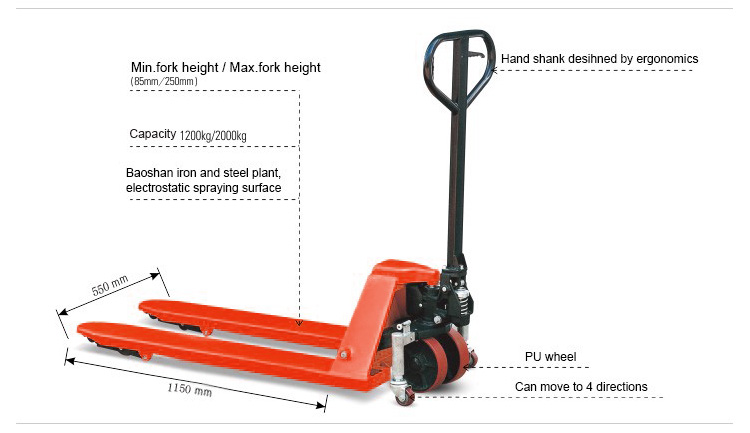

hydraulic pump jack 2 ton hand Pallet truck What Features of our ce hydraulic df hand Pallet Truck?   Hugo ce hydraulic df hand pallet truck parameter size
Capacity (T) Pump Fork dimensions (mm) Steer wheel size(mm) Load wheel size(mm) Steel plate thickness (mm) Minimum height     (mm) Max lift height  (mm)
2 AC 1150*550

Nylon

180*50mm

Nylon 80*70mm 3.75 80 200
2 AC 1200*685

Nylon

180*50mm

Nylon 80*70mm 3.75 80 200
2.5 AC 1150*550

Nylon

180*50mm

Nylon 80*70mm 3.75 80 200
2.5 AC 1200*685

Nylon

180*50mm

Nylon 80*70mm 3.75 80 200

2.5

with Scale

AC 1150*550

Nylon

180*50mm

Nylon 80*70mm 3.75 80 200

2.5

with Scale

AC 1200*685

Nylon

180*50mm

Nylon 80*70mm 3.75 80 200
3 AC 1150*550

Nylon

180*50mm

Nylon 80*70mm 3.75 80 200
3 AC 1200*685

Nylon

180*50mm

Nylon 80*70mm 3.75 80 200
5 AC 1200*685

Nylon

180*50mm

Nylon 80*70mm 3.75 80 200
  hand pallet truck type introduction

AC  integrated casting pump

1.Good sealing performance:Overall seal, avoid leaking
2.Each piston rod with chromium plating treatment
3.Overflow valve has overload protection
4.Whole overflow valve in view,so can be fixed easy
Notice:The min lifting height is 85mm

DF  welding pump
Reduce the whole pallet truck costs, affordable,
with the following advantages:
1.  Oil pump with manual slow down control valve, high safety
2.  Three adjustable handle for easy operation
3.  In the front of fork is cambered, easy to insert the pallet
4.  C-type fork can support heavy load, durable
5.  The fork can be manually adjusted to control
      the minimum height of the fork
Notice:The min lifting height is 75mm


 The difference between the two:
  AC oil pump is a pump, one-time casting molding.

  DF oil pump is split pump is separate welded, the advantages of an integral       pump is raised after loading effort,
  The valve core is an integral whole, and the valve core has the advantages of long service life, little trouble and labor saving.

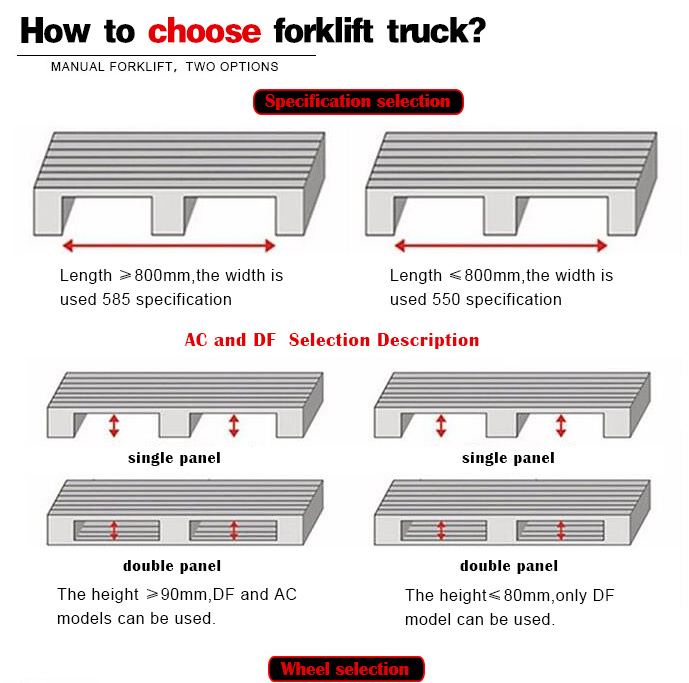

Our advantage How to choose products

The nylon wheel has low turning power,

Light pulling, stable chemical properties and so on,

Suitable for the use of cement ground

PU wheel (also called polyurethane wheel)

Wear resistance, no indentation, mute, shock absorption,

It is suitable for marble, paint and epoxy floor

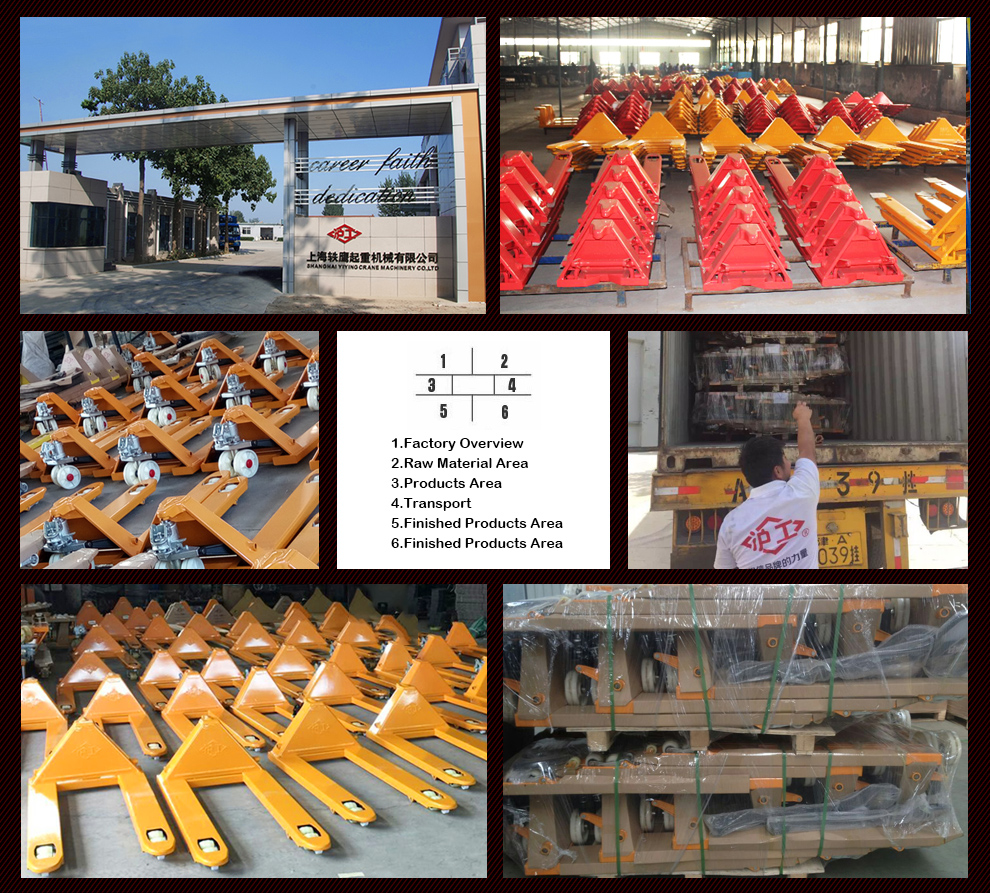

Company strength      Click inquiry

Contact us if you need more details on 2 ton hand pallet truck. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 2 ton hydraulic pump jack、2 ton hydraulic pump hand pallet truck. If these products fail to match your need, please contact us and we would like to provide relevant information.
