Building material lift price 220V electric mini winch

Product Description

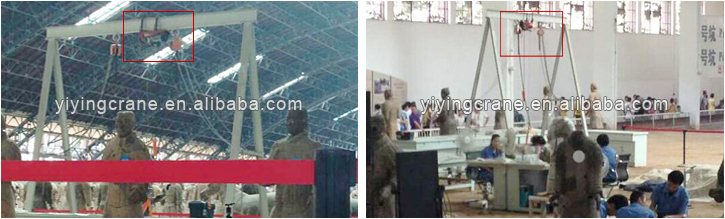

 Building material lift price 220V electric mini winch Product Description    building material lift winch price 220V electric mini winch        It is with  emergency stop switch and  Upper limit, more safe.  We are a manufacture with long history, these are the Parts of the electric hoists. Our products are widely used in many places, such as the Terra-Cotta Warriors. 1. building material lift winch price 220V electric mini winch Introduction

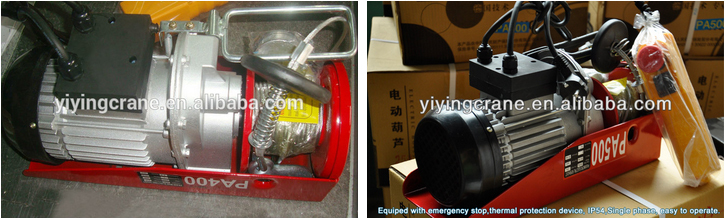

It has emergency stop switch and forced open limit switch. The protection class is IP54, and has thermal protection device. 2. building material lift winch price 220V electric mini winch Main specifications  1)The emergency stop switch 2)Upper limit function 3)Thermal protection terminal 4)Protection class IP54 5)Insulation class B 6)Group of mechanisms M1 7)Work Duty: S3-25%-10min 8)Rated Volt: 220/230V ~ 50Hz 9)Rated Current: 2.0A 10)Input Power: 550W 11)Lifting Weight: 100kg (Single-line), 200kg (Double-line) 12) Lifting Height: 12m (Single-line), 6m (Double-line) 13)Lifting Speed: 10m/min (Single-line), 5 m/min (Double-line) 14)Diameter of wire rope: 3.0mm 15)Tensile strength of wire rope ≥ 1870N/mm2 3. building material lift winch price 220V electric mini winch Technical parameters:

 Model

PA200

PA250

PA400

PA500

PA600

PA800

PA1000

 Rated Volt(V)

                                                        230-50hz S3 20% 10 min

 Input Power (w)

450

500

750

900

1050

1300

1600

 Rate Lifting(kg)

100/200

125/250

200/400

250/500

300/600

400/800

500/1000

 Lifting height(m)

12/6

12/6

12/6

12/6

12/6

12/6

12/6

 Lifting speed(m/min)

10/5

10/5

10/5

10/5

10/5

10/5

10/5

 Packing  dimensions(cm)

44*38*20

44*37*25

44*37*25

44*37*25

53*45*19

53*28*35

53*28*35

 G.W/N.W

24/22

25/24

25/33

36/34

41/38

38/36

40/38

 Quan/ctn(pcs)

2

2

2

2

2

1

1

  Our Products Product Range:(Click the blue words for more information) Electric Chain Hoist/wire rope hoist/Wire Rope Winch/Mini Type Hoist/Pallet truck/Hydraulic jack/Explosion-proof hoist/Stainless steel hoist/lever hoist/ Chain Hoist    Know more<<>>   Company Information Shanghai Yiying Crane Machinery Co., Ltd. Was established in 1992, which specializing in designing and manufacturing Manual Chain Hoist, Lever Hoist , Electric Hoists, Forklift and other lifting products. 1. Annual production in 5 million units production area 3600 square meters; 2. 4 production bases in HangZhou, Chongqing, Jiangsu and Hebei. 3. 120 production lines; 4. More than 500 employees; 5. Annual export value over 50 million RMB.     Why choose us BRAND ADVANTAGE 1. 50 years brand history; (Trademark registration number; 1975110) 2. TOP5 Lifting Equipment supplier in China; 3. One of the first batch of enterprises certified by Alibaba; 4. Brand customers: CNPC, China Railway Group and so on   TECHNOLOGY ADVANTAGES 1. Focuse on the production and R&D of lifting equipment for about 30 years; 2. Professional independent research and development team, recognized by domestic and foreign customers. 3. Company was honored by the givernment as a High-Tech enterprise in 2010   Service Advantage 1. 7D*24H after-sales service, 2. More than 100 professional service staff.   The products of our company have exported to over 80 countries and regions,including EUROPE,USA,AUSTRALIA and SOUTHEAST ASIA,etc.   Certifications RIGOROUS QUALITY CONTROL 1. Certificate:CE,SGS,ISO:9001,BV 2. The third-party inspection for quality testing is accepted 3. Product qualification rate more than 98% 4. In accordance with the requirements of Environmental Protection Administration,     the quality and delivery can be guaranteed   Our Services 1. Perfect maintenance service and maintenance consultation system to provide high quality experience for customers at home and abroad; whole year warranty. 2. Small order can be accepted, MOQ 1PCS. 3. Quality assurance agreement provided. 4. 7D*24H after-sales service. 5. More than 100 professional service staff. 6. Video tutorials, maintenance, technical consultants, installation guidance are offered.   FAQ 1.Is your product customized? Thanks for your question. Yes, because the working condition are different,  All  our products are customized dependingon detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!   2. What’s the information should I provide when inquiry? Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, or other specials you give us will be more appreciated.   3. How many operating methods for my selection? Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!   4.The space of my workshop is limited, can the crane ok for mine? Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.   5. What’s the information should I provide when inquiry?      a. What's the lifting material?      b. How much is the maximum lifting weight of the hoist?
     c. Have you installed the rails? Do you need us supply the rails? How long is it?
     d. Where are the working environment?   Know more<<>>

Contact us if you need more details on winch. We are ready to answer your questions on packaging, logistics, certification or any other aspects about mini winch、building material lift winch price. If these products fail to match your need, please contact us and we would like to provide relevant information.
