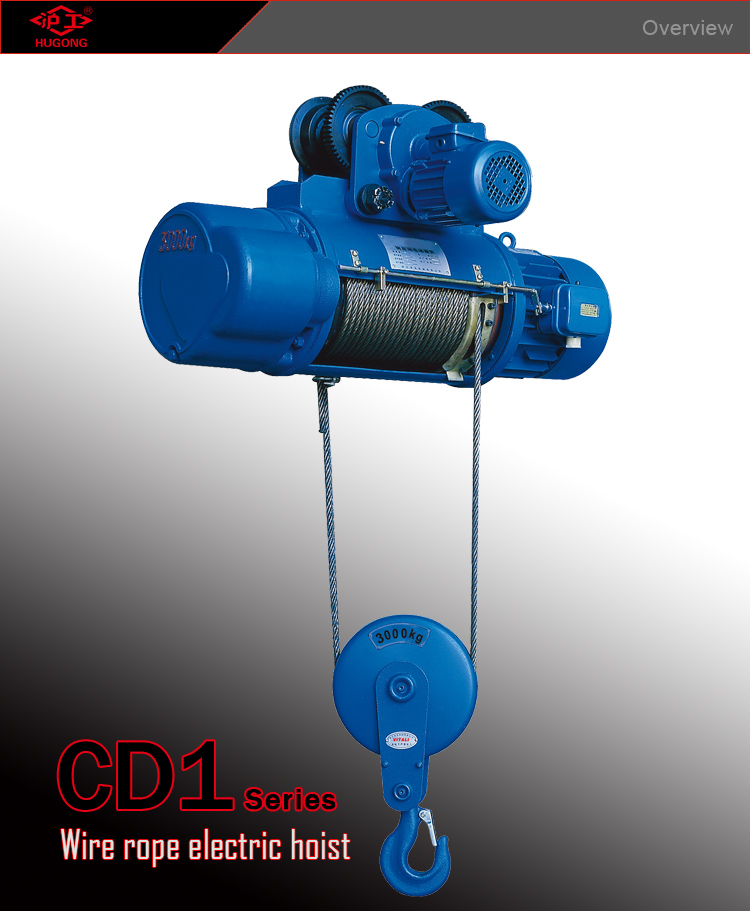

Double Beam Electric Wire Rope Hoist With Trolley

Product Description

            Double Beam  Electric wire rope hoist With Trolley     CD1 Model wire rope electric hoist lifting block CD1 Hoist Gearbox Introduction of CD1 Model wire rope electric hoist lifting block CD1 Hoist Gearbox

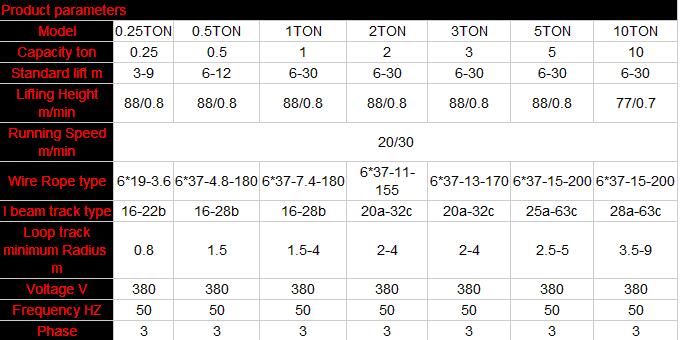

  Product parameters

1.Reducer: adopt third-class dead axel helical gear transmission structure gear

and geaaxel are made of heat treated alloy steel

2.Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.
3.Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.
4.Protection grade: IP54, work grade: M3
5.Over load limit is available. Hook is widen and thicken
6.Power-Off protection, Emergency stop system.
    CD1 Model wire rope electric hoist lifting block CD1 Hoist Gearbox

Motor

Light weight and small volume of high-performance motor. Rotating speed can be up to 3000r.m.p. High starting torque and high energy efficiency. Sustained rate of electric connection reaches up to 60%, which can meet the demand for high frequency handling.

Hook

it is hot forging with perfect strength
that is hard to break,



Push button

Waterproof push button is applied .

it is light and durable.

  CD1 Model wire rope electric hoist Material object   CD1 Model wire rope electric hoist lifting block production process        CE ISO TUV SGS certificate
FAQ 1. Is your product customized?
Thanks for your question. Yes, because the working condition are differet, All our products are cstomizd dependingon detail requirement! So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What's the information should i provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, ift height, power source or other specials you give us will be more appreciated.
3. How many operation methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin(space capsule seat) control with joystick. You can choose any of them, just tell us!
4. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the special products. The detail dimension please consult our professional enfineer.
5. What's the information should i provide when inquiry?
 a. How much is the maximus lifting weight of the hoist?
 b. Have you installed the rails? Do you need us supply the rails? How long is it?
 c. Where are the working environment?


Contact us if you need more details on electric wire rope hoist. We are ready to answer your questions on packaging, logistics, certification or any other aspects about electric hoist、hoist. If these products fail to match your need, please contact us and we would like to provide relevant information.
