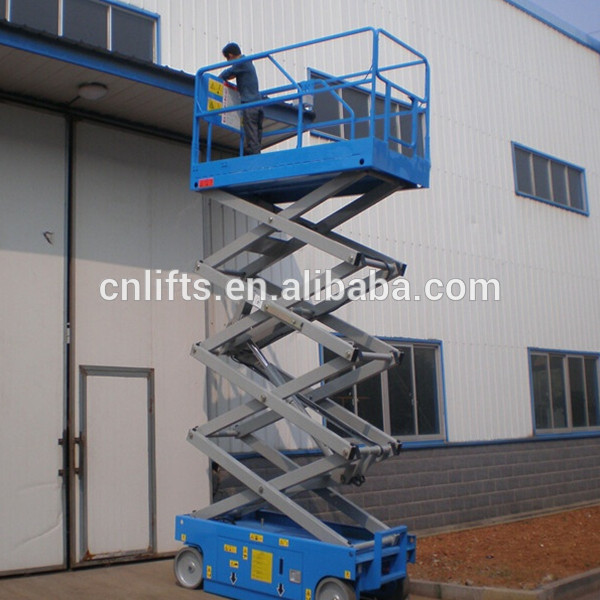

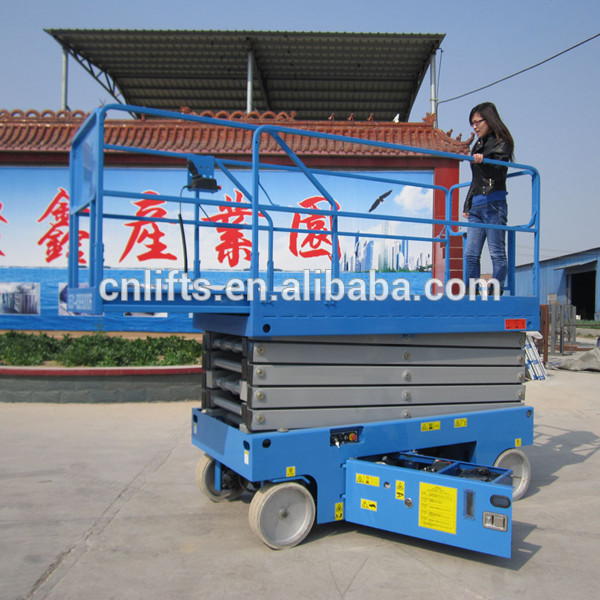

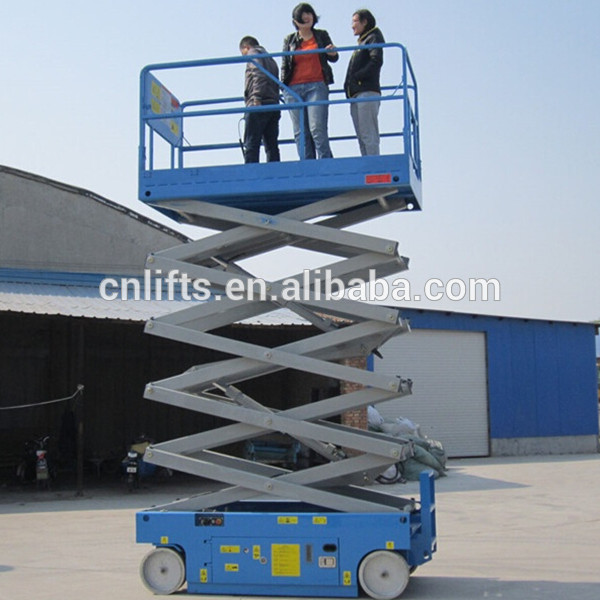

Full Electric Self Propelled Scissor Lift Aerial Work Platform

Full Electric Self Propelled Scissor Lift aerial work platform       Breif introduction   1. Hydraulic Self-propelled Scissor Lifts is the professional high-altitude operation equipment. 2. Its scissor mechanical structure makes the lifting Platform Lift more stably.     Wide working platform and large loading capacity can make the work scope bigger.     It’s suitable for several people working together. 3.Lifting height: 6m, 8m,10m ,12m and so on.   4. Loading capacity:300kg, 500kg, 800kg and so on.
  Control   1. Manual control and electric control. 2. Electric control: There are two control systems(optional). One is hand button,     which may be placed in any position on the table rail for the convenience of operation.
    The other is fixed on the electric-control box, which is supported with emergency stop button     for prevention of any accident.
Power   1. Electricity or diesel: local power available at the working sites(110V,220V,380V,415V),     diesel engines and generators. 2. It can be equipped with manual hydraulic device, so when there is no power at the occsions     or the power supply goes out, the lift can still work normally.
  Safety   1. In special circumstance, the scissor lift can equip explosion-proof electric equipment. 2. The platform is equipped with antiskid plate to prevent slipping, it is enough safe      when workers on the platform. 3. The lift has hydraulic overload protective organization to ensure that equipment will not lift     when the load beyond its rated load capacity. 4. The scissor lift is equipped single control solenoid valves to prevent the platform dropping     if power failure. You can open the manual dropped valve to lower the platform to the home position.   Services:   We supply Spare Parts free for one year, and supply the technical supporting All the time.
  Application:   They are widely used in factories, Star Hotels, restaurants, railway stations, airports theaters , exhibition halls and other places,It's the best security partner together with maintenance of equipment, paint renovation, replacement lamps, electrical appliances, cleaning and maintenance and other uses.

MODEL	SJZ0.3-10
Working height	11.8m
Lifting height	10m
Platform size	2500*1200mm
Self-height	1.4m
Guardrail	1.0m
Extend platform	900mm
Load capacity	300kg
Extend platform load	150kg
Wheel base	1.2m
Turn radius	2.3m
Ground clearance	150mm
Weight	2800kg
Grade ability	25%
Battery	6pcs 6V/230AH
Controller	C101
System voltage	24V
Tyre size	300*100mm 4pcs
Traveling speed	5km/h
Charge	24/15
Lifting motor	DC5kw/24v
Driving motor	DC7.5kw/24v



Contact us if you need more details on Full Electric Self Propelled Scissor Lift Aerial Work Platform. We are ready to answer your questions on packaging, logistics, certification or any other aspects about hydraulic scissor lifts、electric scissor lift. If these products fail to match your need, please contact us and we would like to provide relevant information.
